Includes Instrument Air Package, 2011, Electric, 7.5 hp, 460V, Vane COMPAIR, model HV05, 130 psig.

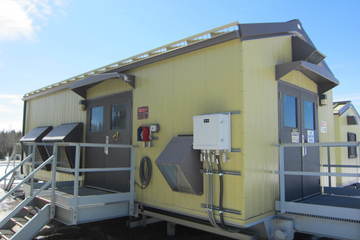

This genset package also contains the MCC & boiler for this site. The MCC end contains an obsolete PLC, furnace, 24VDC rectifier, and main breaker system for the site. The genset end of the building contains a main & standby generator, as well as the switchgear & control panel for the gensets. The boiler & pumps for heating the other buildings is also in this end of the building. The boiler is a Raytherm 2.25MMBTU/hr unit. S/D spring 2019

MORE PICTURES TO COME

Description:

1. GE 7EA GTG Packaged Power Plant.

The package comprises the following major components along with all GE scope of supply and auxiliaries:

• Frame 7EA Gas Turbine model PG7001EA (7E.03)

• Dry Low NOx (for DLN 1.0 Combustion System)

• Natural gas single fuel supply

• Output/Heat Rate 87MW and 10,480 btu/kwh at 1916 ft

• Includes GE PIP package (minus Stg 3 Aero), 2055F firing temp.

• Inlet/Exhaust: Pressure drop: 3.5/5.5 inches of H2O

• Design site elevation: approx. 1916ft above sea level.

• Hours: factory test fire only, ie New.

• Control System; MKV1e Speedtronic TMR.

• Generator; GE/Andritz

• Frame: BDAX (Brushless)

• Excitation: GE EX2100

• Terminal Voltage: 13.8Kv (2 pole, 3-phase, Wye conn.)

• Frequency/Power Factor: 60 Hz/0.85 pf

• Rated Output: 86.5 mw/101.8 MVA

• 52G synchronizing breaker compartment included @ 13.8KV incl. all protection relays etc.

• Cooling: Air-cooled.

• Design for Canadian Market. Stored in accordance with GE's storage/preservation requirements.

Additional Options:Combustor Components to be selected and agreed upon between buyer and seller. Contact seller for more information
